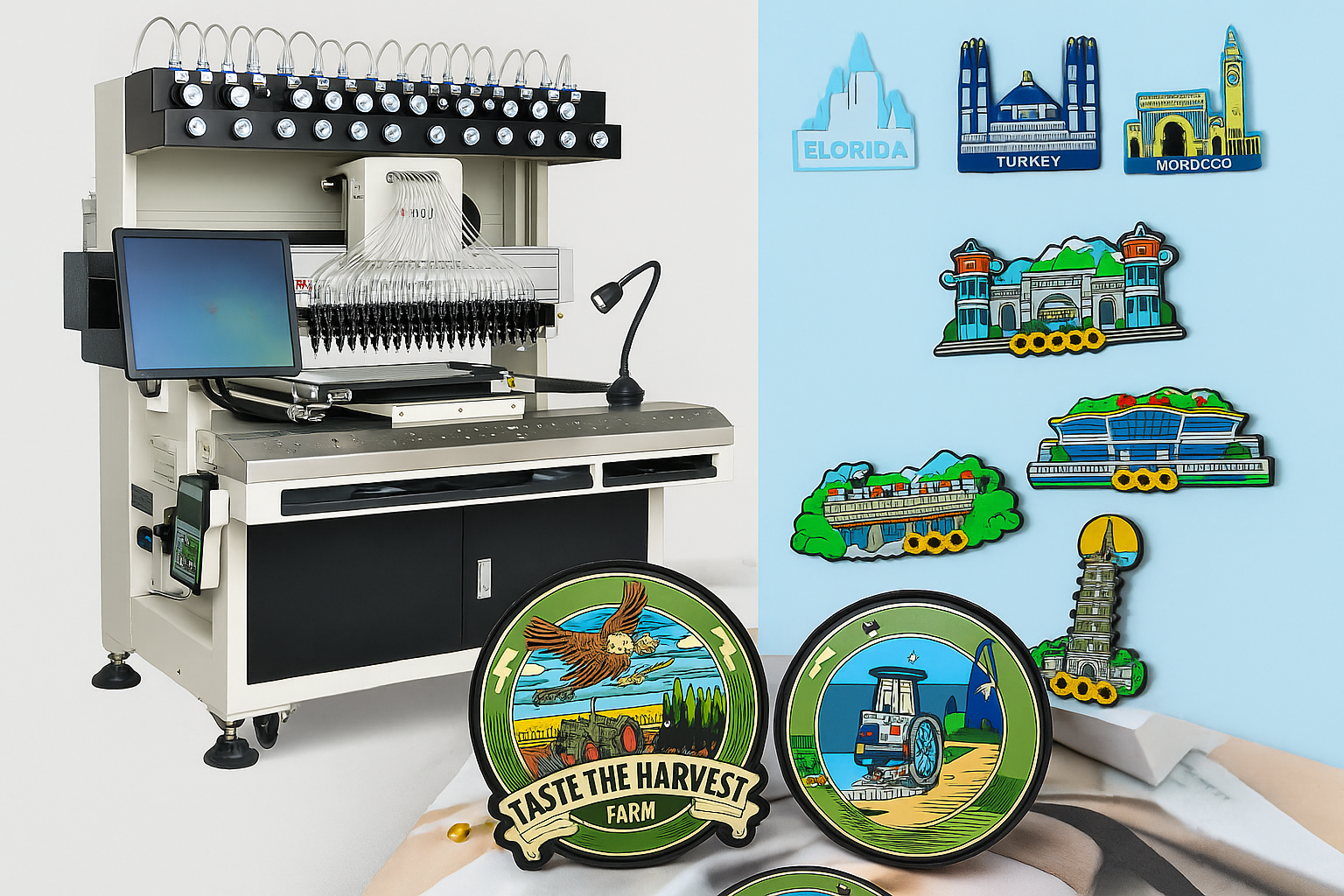

AI Software Rubber Logo Making Machine for Luggage Tags Logo PatchesMorale PatchesKey chain PatchesCoastersBag AccessoriesFootwear AccessoriesBar mats

type: Coating Production Line
video outgoing-inspection: Provided
machinery test report: Not Available
core components: PLC, Engine, Bearing, Gearbox, motor, Pressure vessel, Gear, Pump
place of origin: China
power(w): 220V 50HZ
dimension(l*w*h): 900(L)*920(W)*770(H)mm
warranty: 1 Year
key selling points: Easy to Operate
weight (kg): 15
machine type: Spray Booths, Painting Equipment, Other
Running distance: 720(L)*420(W)*70(H)mm
Working tabel size: 740*430mm
Machine size: 1370(L)*1230(W)*1570(H)mm
Working speed: 60m/min
Color: 18
Condition: New
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Showroom Location: Turkey, Viet Nam
Applicable Industries: Building Material Shops, Machinery Repair Shops, Advertising Company, Other
Machine Type: dispensing machine
- Price：￥0.00

  List price：￥0.00

  MemberPrice：
  Ordinary：￥0.00

  VIP：￥0.00

  Distribute
- Satisfaction：

  Sales： 0

  Review： 0
Weight：0.000KG
- Quantity：
- (Inventory: 99999)
- Add to cart

  Buy now

Description

type: Coating Production Line

video outgoing-inspection: Provided

machinery test report: Not Available

core components: PLC, Engine, Bearing, Gearbox, motor, Pressure vessel, Gear, Pump

place of origin: China

power(w): 220V 50HZ

dimension(l*w*h): 900(L)*920(W)*770(H)mm

warranty: 1 Year

key selling points: Easy to Operate

weight (kg): 15

machine type: Spray Booths, Painting Equipment, Other

Running distance: 720(L)*420(W)*70(H)mm

Working tabel size: 740*430mm

Machine size: 1370(L)*1230(W)*1570(H)mm

Working speed: 60m/min

Color: 18

Condition: New

Marketing Type: Ordinary Product

Warranty of core components: 1 Year

Showroom Location: Turkey, Viet Nam

Applicable Industries: Building Material Shops, Machinery Repair Shops, Advertising Company, Other

Machine Type: dispensing machine

Operation Procedures of AI assisted pvc rubber logo making machine

Step 1	Step 2	Step 3	Step 4
Import product images	Matching	Setting path parameters	Automatically generate dispensing paths

CLICK HERE TO GET A QUICK QUOTATION

Technical Parameter

Model	WD600E - 18B
Running Distance	X: 720 , Y: 430 , Z : 70
Worktable Size (mm)	740*430
Dispensing Nozzle Quantity (pcs)	18
Accuarcy (mm)	+/- 0.01
Dispensing Speed	30000mm/min
Power	220V , 1.5 KW , 50/60 Hz
Transmission	Screw Balling and H level Screw Balling
Motor	XINPU servo motor
Machine Size (mm)	134012201650
Machine Weight （kgs））	360

Why Choose AI assisted pvc rubber logo making machine

Weldo as the leader development and manufacturers for 3D jewelry wax stone setting machine in wordwide , we implants brains and eyes into our jewelry diamond setting robot .

	Strong R & D Team
	Led by our boss Doctor Lee , our R&D continuously drives innovation , keeping our machine technology ahead of the competition.
	Standardized Manufacturing
	Our standardized manufacturing process follows the ISO 9001 quality system , ensuring high quality and precision Jewelry Wax Stone Setting Machine
	International Technical Support
	From pre-sales consultation to post-sales service , our technical supports ensures reliability and boosts customer trust in selecting our 3D jewelry wax stone setting machine

Key Specification of 3D Jewelry Wax Stone Setting Machine

Intelligent Data Acquisition System
Wax Stone Setting Inlay System

Chapter 1 Intelligent Data Acquisition System Of 3D Jewelry Wax Stone Setting Machine

2K Laser Scanning

3D Stone Software

Up Camera

Down Camera

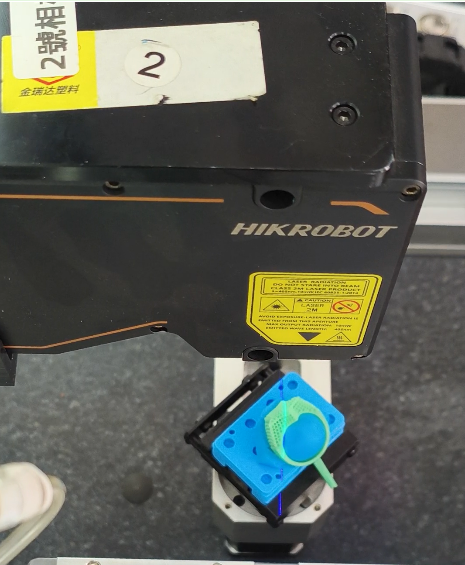

2K Laser Scanning : By emitting sub-millimeter-level blue laser and utilizing the principle of laser triangulation, the system leverages built-in high-precision 3D algorithms to output high-frame-rate point cloud data, depth maps, and intensity images in real time with sub-micron accuracy.

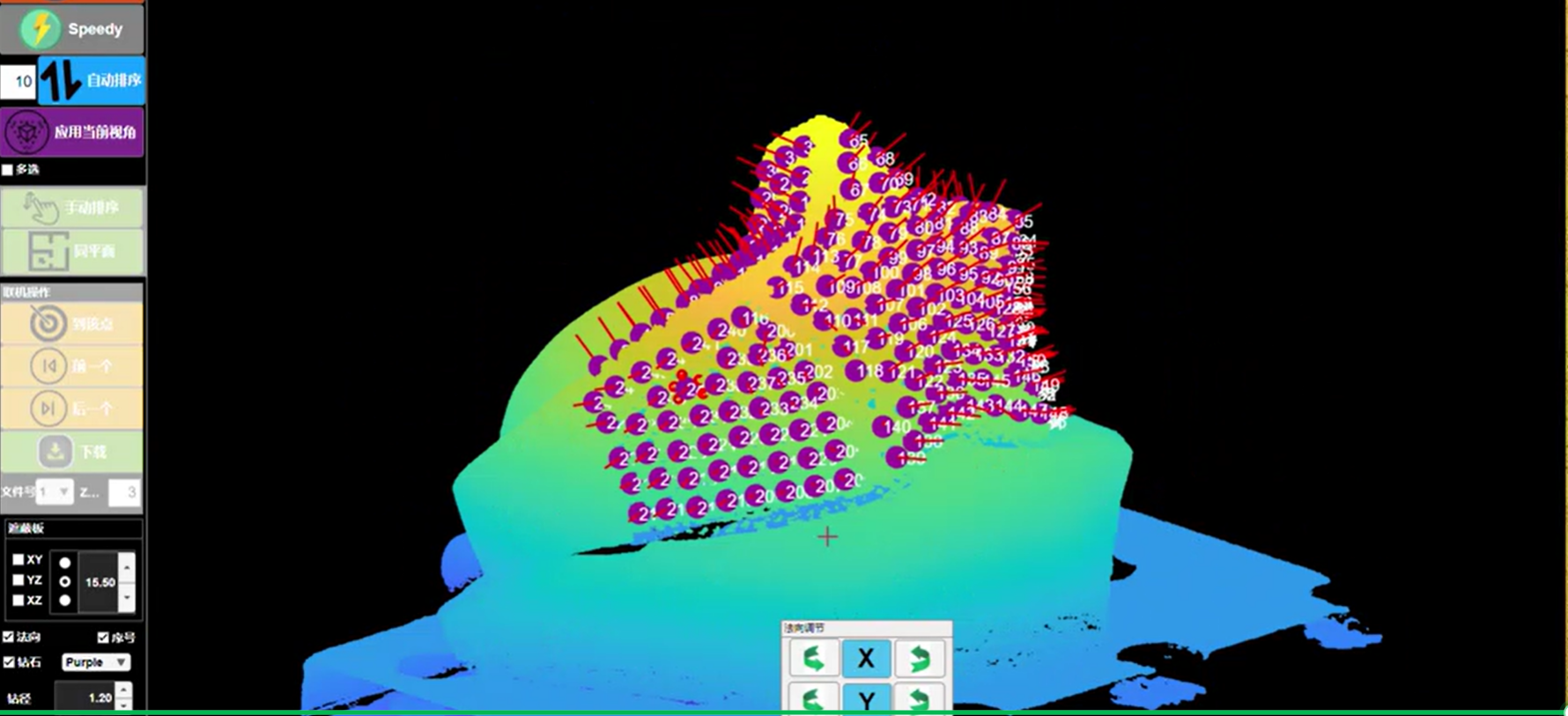

3D Stone Software : By integrating point cloud data from intensity and depth maps of varying brightness, a 3D laser point cloud image is generated. Built-in geometric algorithms and deep learning capabilities assist operators in accurately positioning the diamond.

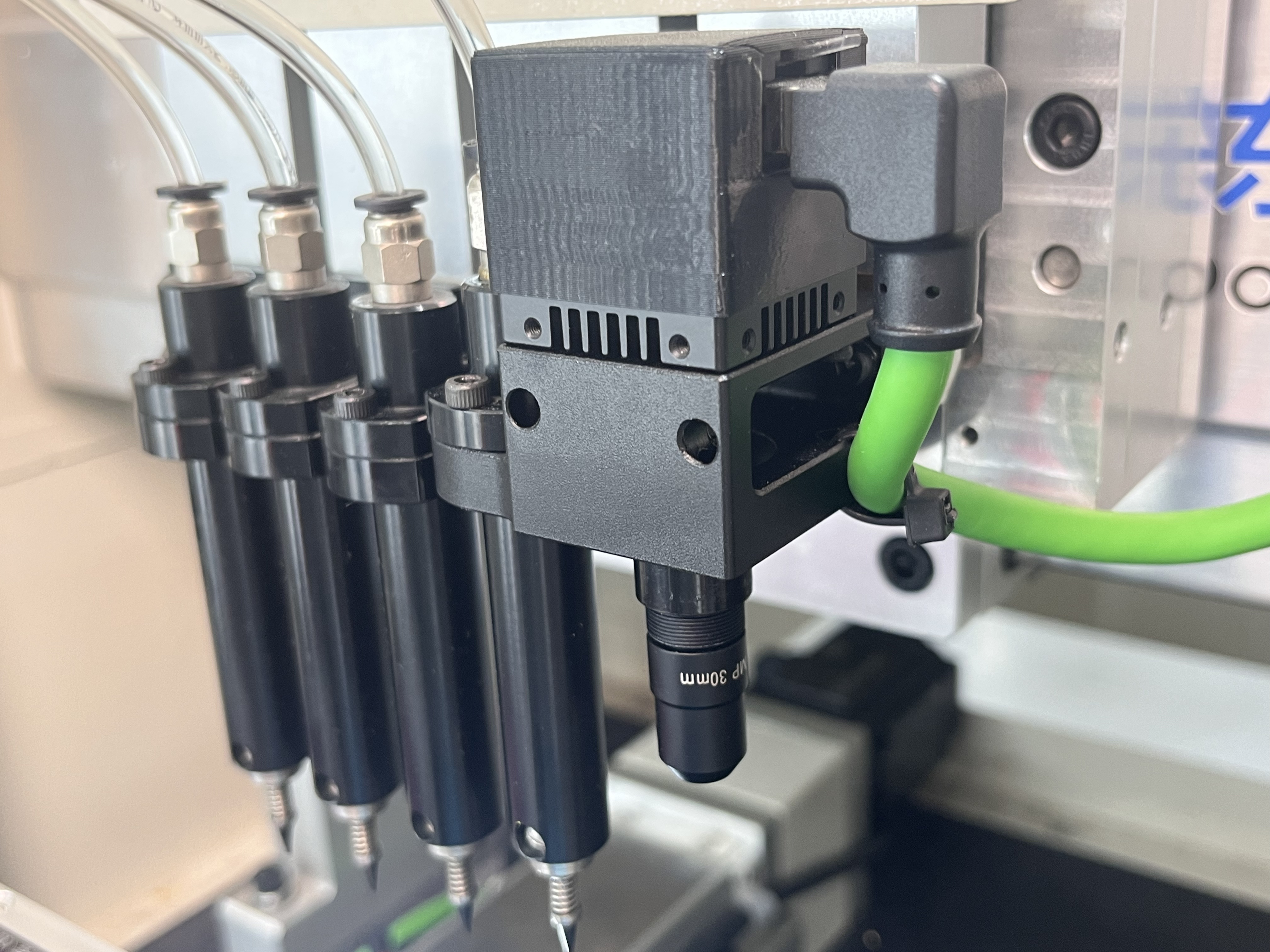

Up Camera : The upward-facing camera is used to automatically detect the position of the nozzles, eliminating the need for manual visual inspection of nozzle alignment on the wax mold. The detection images are tracked and displayed in real time on the computer for accurate monitoring.

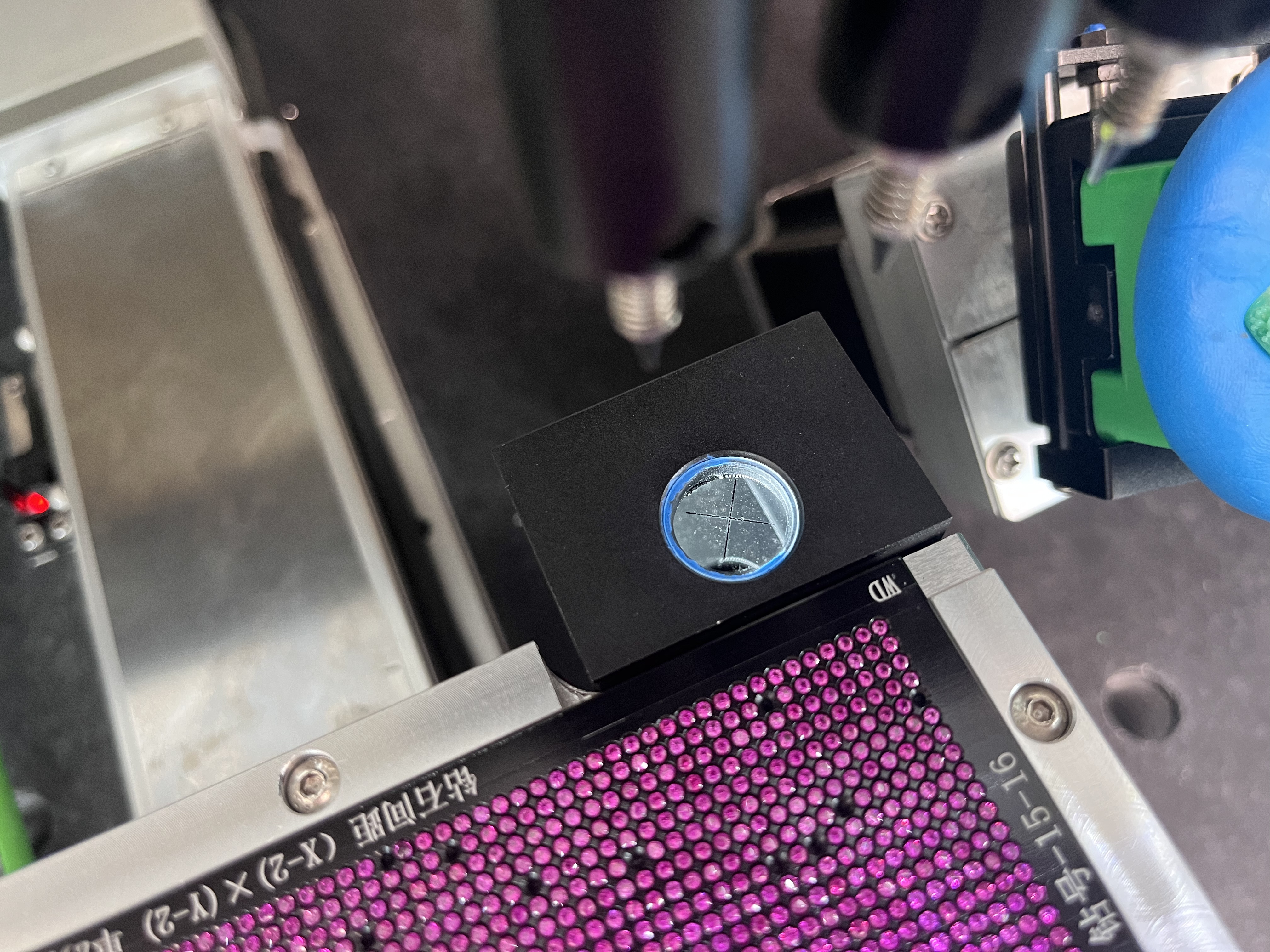

Down Camera : The downward-facing camera is designed to accurately set the stone nozzle’s picking position, eliminating the need for manual visual alignment with the stone holes on the tray. The nozzle’s zero-point calibration and positioning can be fully tracked and monitored through the computer software via real-time camera imaging.

Chapter 2 : Wax Stone Inlay System Of 3D JEWELRY WAX STONE SETTING MACHINE

9 Axises Joint-Action Working

Automatically Wax Mold Feeder

4 Processing Files

Precision Stone Tray

Intelligent Vacuum Valve

Thermostatic Heating System

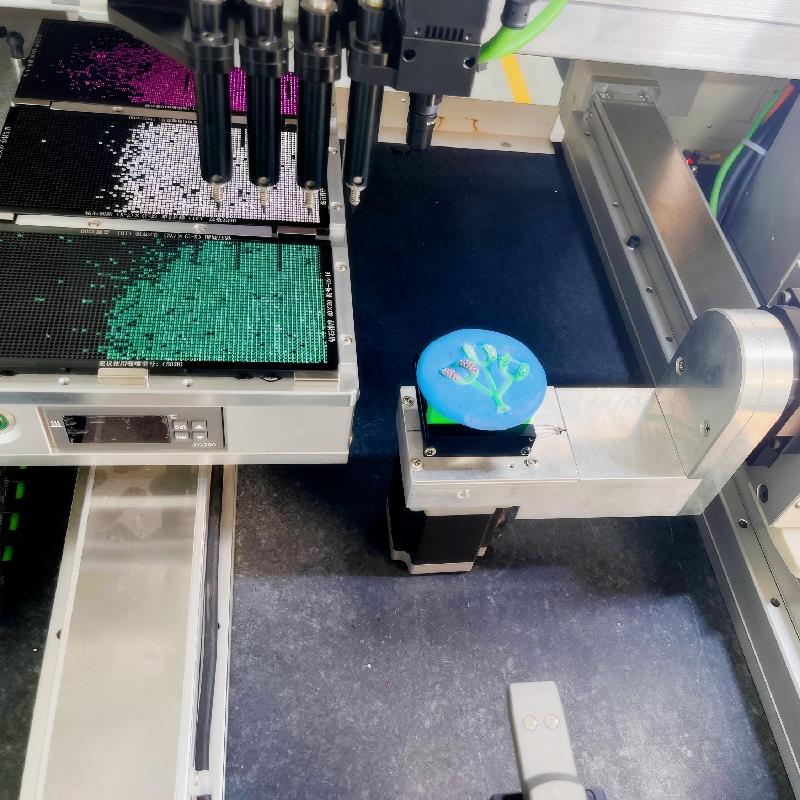

9 Axis Joint-Action Working : The 3D jewelry wax stone setting machine features a 9 axis architecture designed for high precision operation. The Y-axis utilizes a magnetic levitation linear guide , ensuring ultra-fast , low noise, and high stable movement . The Y axis adopts a dual-rail system: Y1 controls the forward and backward movement of the gem-setting platform, while Y2 manages the coordinated motion of the A and B rotary axis . The A-axis enables large-angle rotation inluding left-right and front-back . 4 sucktion nozzles are driven by high-speed linear motors. All 9 axises are precisely aligned orthogonally , ensuring exceptional accuarcy and operational efficiency .

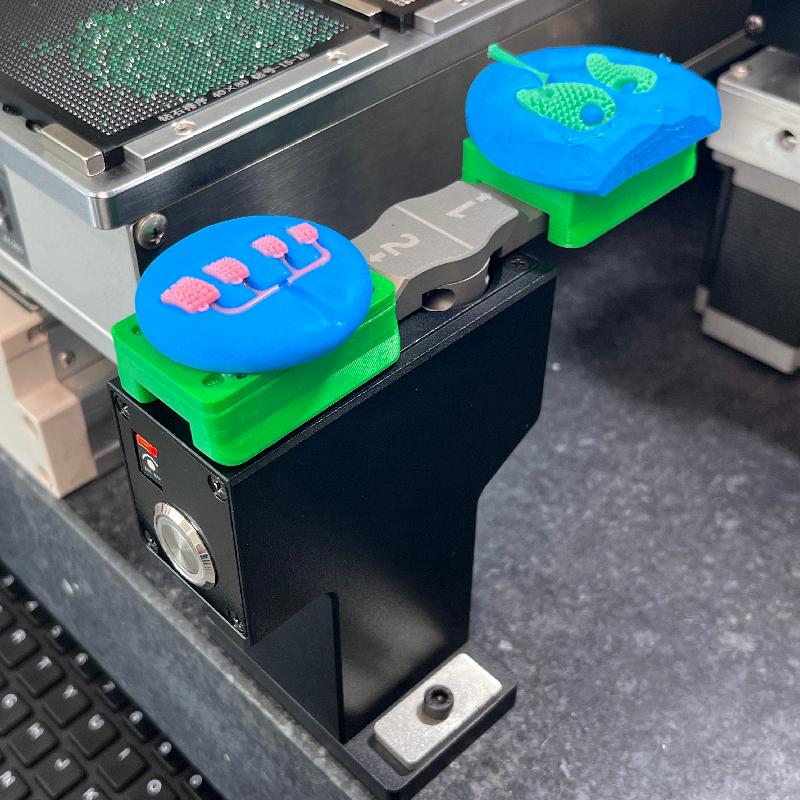

Automatically Wax Mold Feeder : The automatic wax mold feeder delivers excellent performance in replacing wax molds efficiently . Operators simply place the wax mold into the silicon jig and press the start button . Once the diamond stone inlay process on one wax mold is completed , the feeder quickly replaces it with the next mold . This automation significantly boosts productivity , effectively doubling the production capacity .

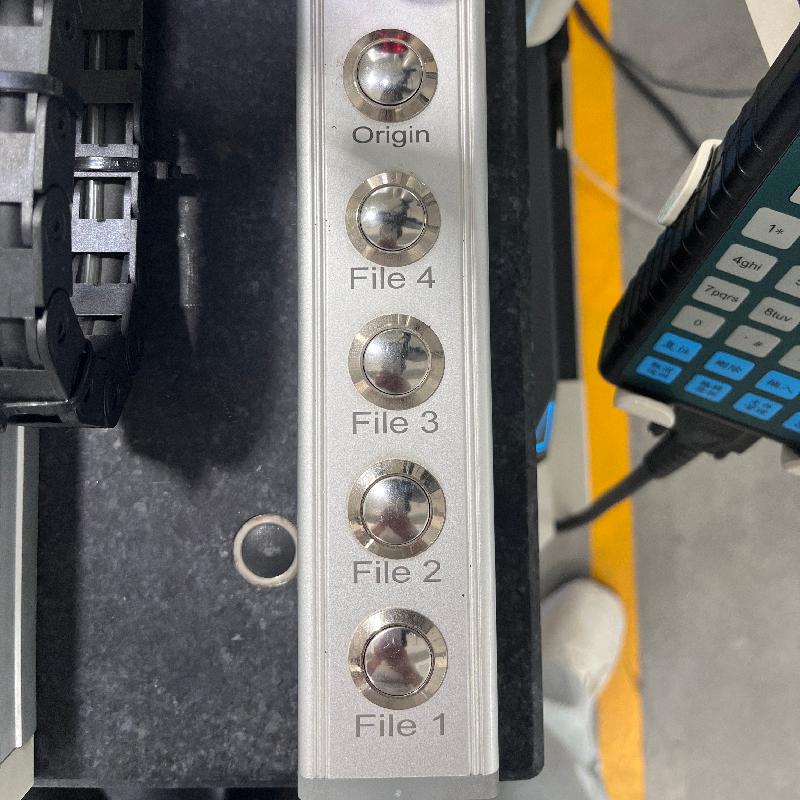

4 Processing Flie : The machine is capable of processing 4 different types of wax molds . The start handle is equipped with 4 program selection buttons . By simply pressing the button corresponding top to the desired program file , the machine will automatically begin the stone-setting process for the selected wax mold .

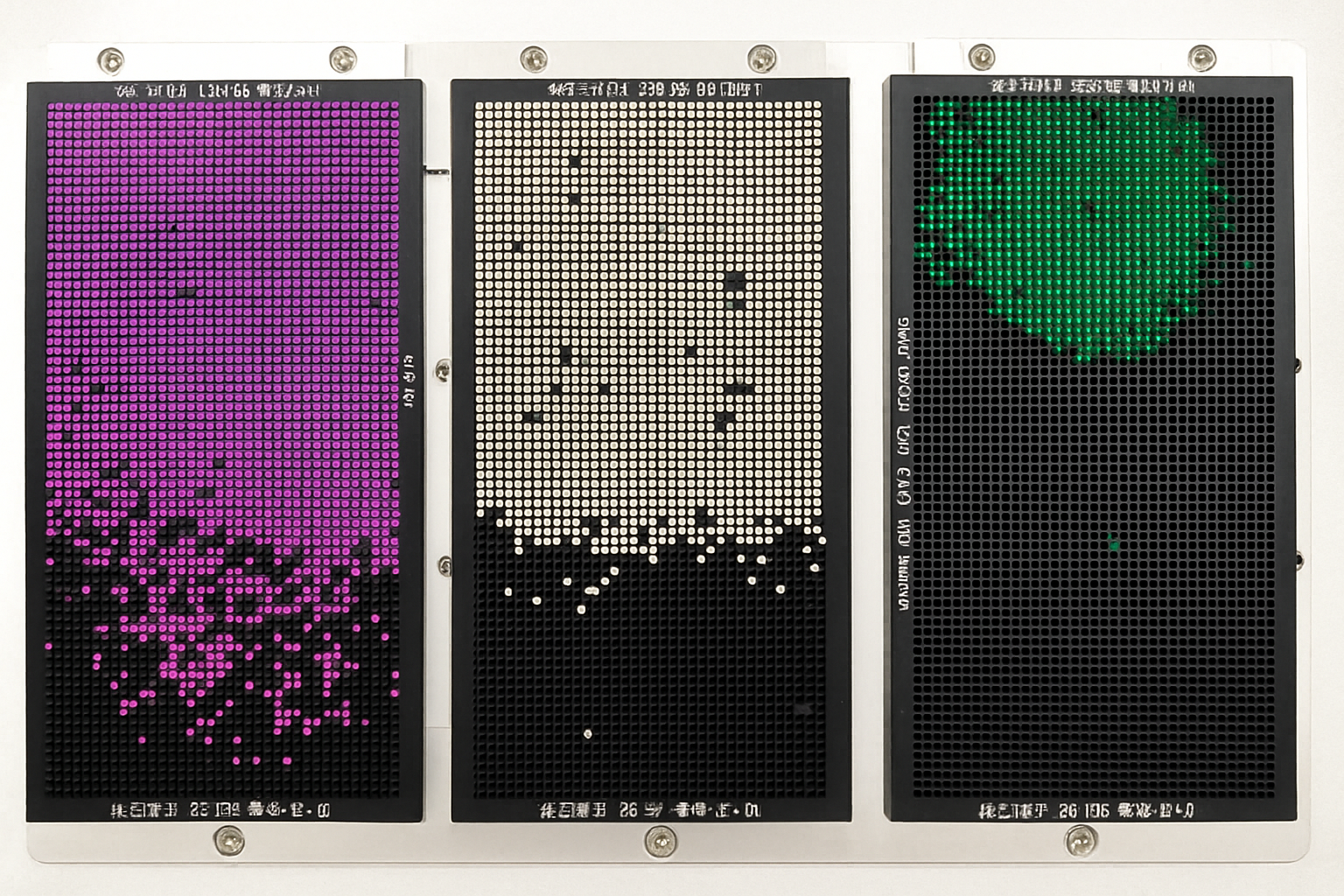

Precision Stone Tray : Our stone tray is manufactured with high precision - two opposite edges are perfectly paralled , and each adjacent edage is precisely perpendicular . the flatness of the tray is controlled with 0.05mm , ensuring smooth operation without sotne jamming .

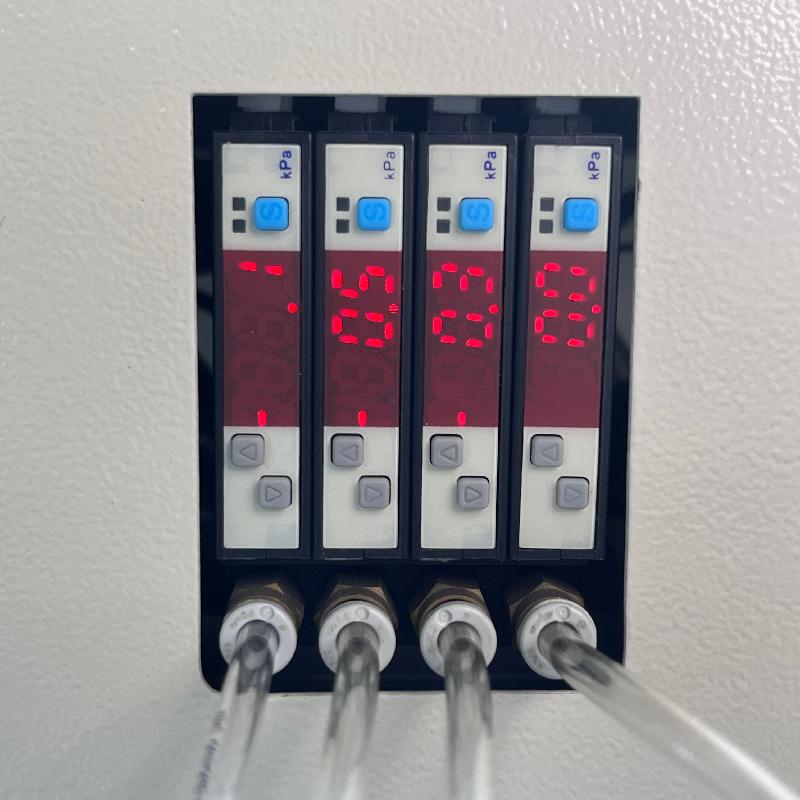

Intelligent Vacuum Valve : This intelligent vacuum valve featuers a detection function that identifies when the nozzles fails to pick up a stone , effectively preventing any missed stone settings .

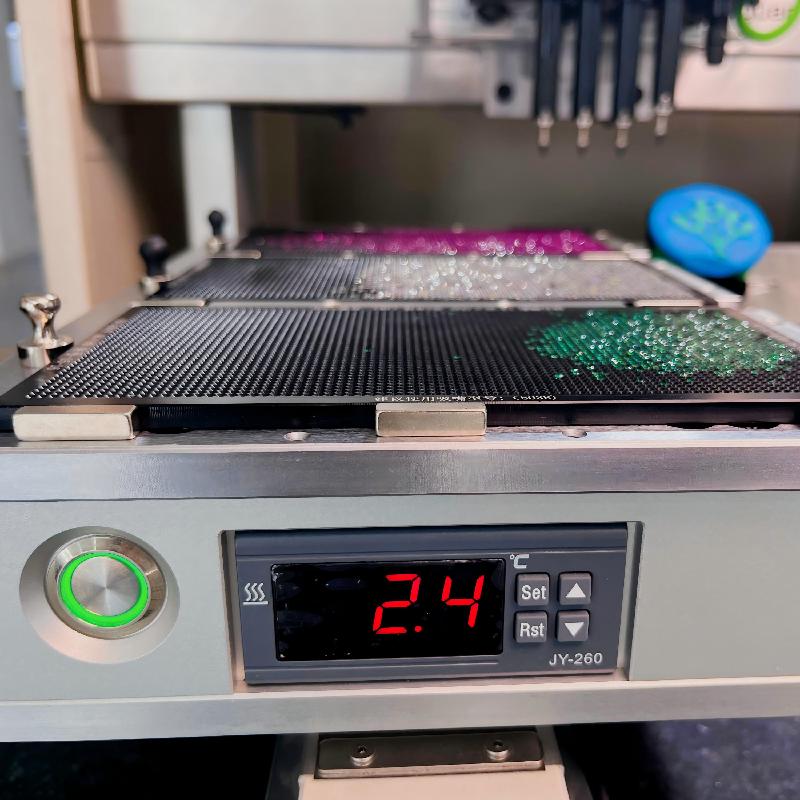

Thermostatic Heating System : The Stone tray heating platform adopts an intelligent constant- temperature heating system, ensuring stable and precise temperature control . it is used to heat the diamonds so that wax prongs slightly melt , allowing the diamond to be embedded more securely insto the wax mold and preventing them from falling out .
